The new design allows the shield contact to be repeatedly “plugged into” the connection fitting, thus enabling the cables to be pre-assembled. Pre-assembled cable harnesses reduce installation costs, simplify production processes and are user-friendly. The system allows the cables to be prepared on site using the battery-operated AXI PRESS tool. This enables cable harnesses to be repaired and supports the flexible and precise assembly of prototypes. The EVolution EMC cable gland was specifically developed for use in electric vehicles and thus withstands the toughest demands in operation.

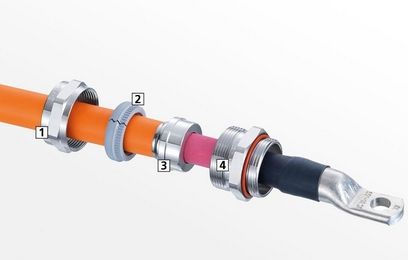

1 Pressure nut
Lead-free version in three sizes – M20, M25 and M32; Easy installation; Simply tighten to the limit (no torquing required).

2 Sealing insert
Highest degree of IP protection; Anti-twist protection for cable thanks to serrated surface; Wide temperature range of -40 to +140 °C.

3 Contact sleeve and supporting ring
The “pluggable” EMC shield contact solution ensures fast and reliable installation; High-quality 360° contact.

4 Connection fitting
Lead-free version in three sizes – M20, M25 and M32; Large clearance for cable lugs to pass through.
