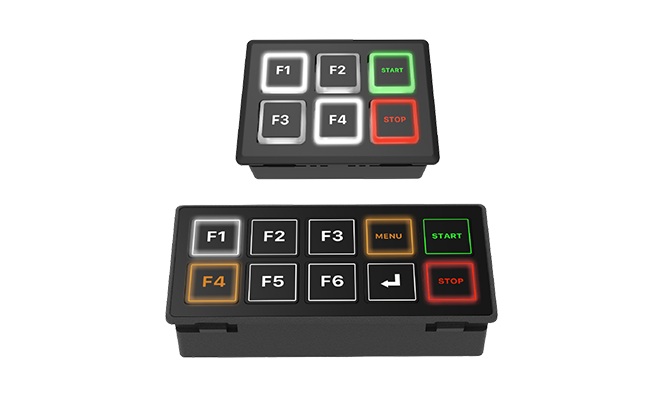

Keypad
)
Customizable key modules for maximum flexibility
The keypad is a multifunctional CAN bus control panel that has been specially developed for individual requirements. It combines state-of-the-art technology with a robust and ergonomic design to enable intuitive and reliable control in a wide range of applications. The three variants TF1, TF2 and TF3 with different push button designs - from insert symbols to predefined symbols and through to a continuous front foil -
it offers maximum flexibility in design and customization.
The available sizes 2x3, 2x4, 2x5 and 4x5 enable both perfect integration into existing control panels and stand-alone use. It can be flexibly adapted to different space conditions and requirements.
A special highlight is the RGB illumination of each individual push button. With up to 16 preset light settings, individual color coding can be implemented. Because of the robust construction and high-quality materials the keypad impresses with a long service life and high resistance to environmental conditions. It is therefore perfect for use in harsh environments.
The Can-Bus interface allows the keypad to be easily
integrated into any machine.
CAN-BUS Protocols:
• CANopen CiA DS 301
• SAE J1939
• SAE J1939-76
• CANopen Safety EN50325-5
Functional safety (push button) PLd able
(EN ISO 13849, conforms with SIL2 to DIN EN ICE 61508)
