CCpilot V1090, a 10" terminal for process control, HMI systems & precision tasks
)
)
)
)
)
)
The CCpilot V1090 display computer is designed to address the needs of process control & precision applications including ISOBUS terminals, 2D/3D machine control and guidance systems.

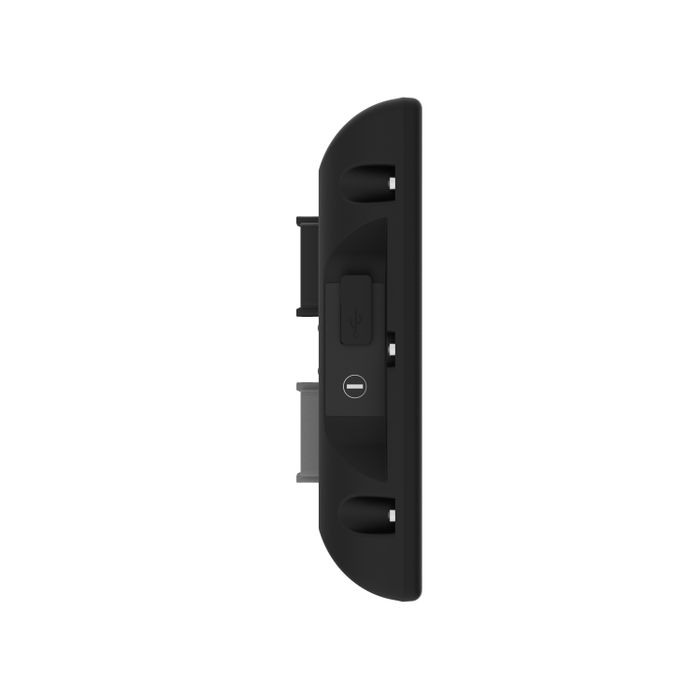

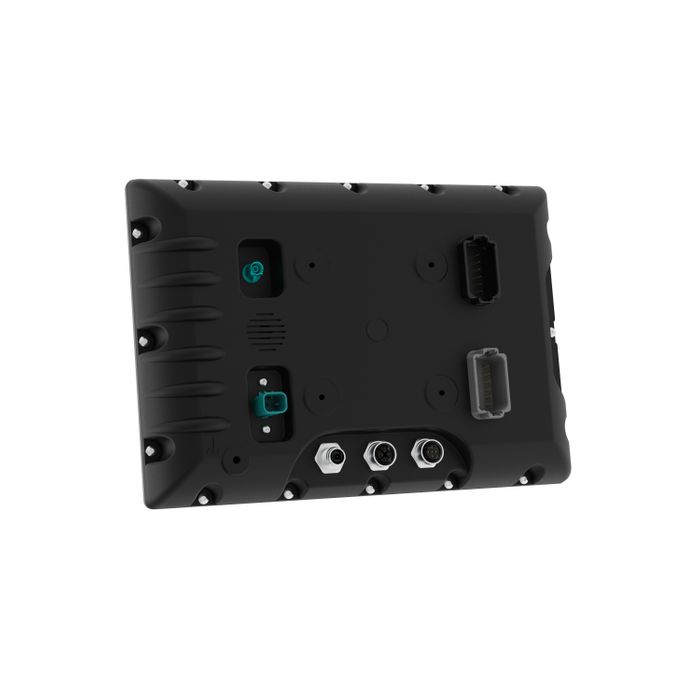

Key features include a 10-inch display, robust aluminium housing, accessible USB port, and fast attach/detach connectors for easy removal and theft prevention. It comes with a rich interface set-up for CAN and Ethernet networking, supporting 1000BASE-T1 and 1000BASE-TX. An optional integrated 100BASE-T1 switch can provide up to 4 connections, for example for Ethernet cameras. This makes the V1090 ideal for a vision system with multiple cameras, with no external switch required.

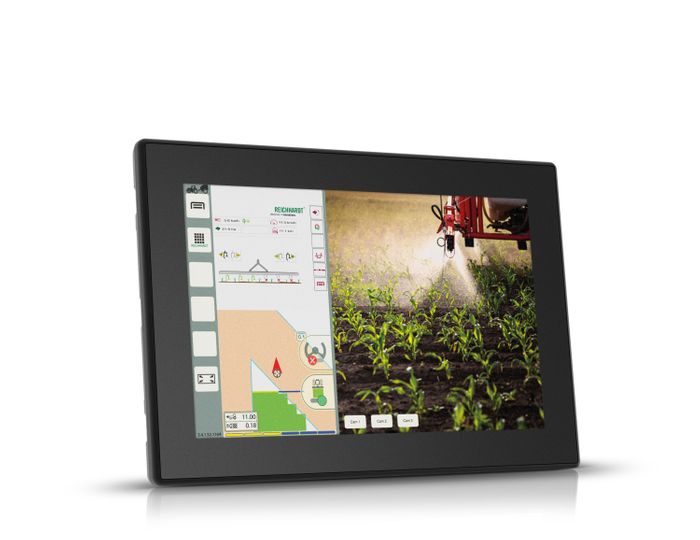

With a high brightness, high contrast Wide XGA resolution IPS type display the CCpilot V1090 provides intuitive user interaction with multi-touch PCAP also with gloves allowing for reliable operation in harsh conditions and readability in direct sunlight aided by the optically bonded screen to reduce reflections and eliminate fogging. The CCpilot V1090 integrates MAX9867 audio codec and PipeWire to support high-quality, flexible audio functionality to enhance the cabin experience, deliver audio notifications, and facilitate communication through the on-board computer.
The CCpilot V1090 is available with LinX, our open and modular software platform. It includes firmware and OS support, pre-packaged application toolchains for Qt and CODESYS, and application modules for commonly required functionality.
Combined with CrossControl’s open software platform & windowing framework this becomes a very powerful platform for OEM factory fit HMI systems. It opens up avenues for running multiple software applications with concurrent visualizations in parallel. This means that precision functionality, for example ISOBUS & guidance, can run side-by-side with commonly required HMI system features including base process control, instrumentation, vision systems and embedded manuals.
For HMI solutions in which a single display may not provide the screen real estate needed to offer a good user interface the V1090 and V1290 has inherent support for an optional display link interface for a secondary monitor in sizes 7”, 10” or 12”, or even a 5” display to act as a smart control pad.
