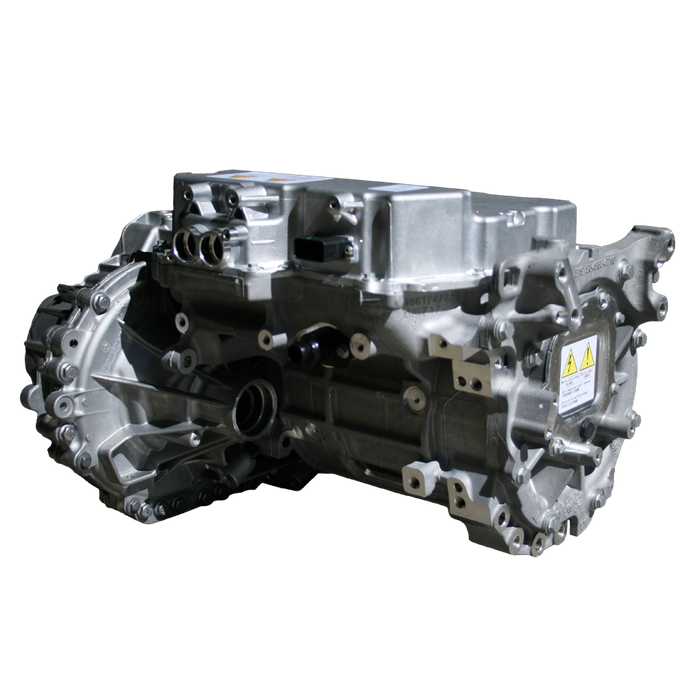

EFM3 – 130kW Electric Drive Unit – 3 in 1 (Motor, Inverter, Transmission)

High-Performance OEM Powertrain Solution

Engineered for Demanding Applications

A fully integrated electric drive unit combining motor, inverter, and transmission into one compact assembly — delivering higher torque, increased power density, and simplified system integration.

Performance Overview

Peak Power
130 kW

Continuous Power
60 kW

Peak Torque
270 Nm

Continuous Torque
130 Nm

Maximum Speed

15,200 rpm

Transmission Ratio Options
9.7:1 | 12.2:1

Electrical Specifications

Voltage Range
220 – 450 Vdc

Mechanical Data

Dimensions (L × W × H)
403 × 395 × 355 mm

Assembly Mass
56 kg
