High-Power OEM Drive Solution

Engineered for High-Performance Applications

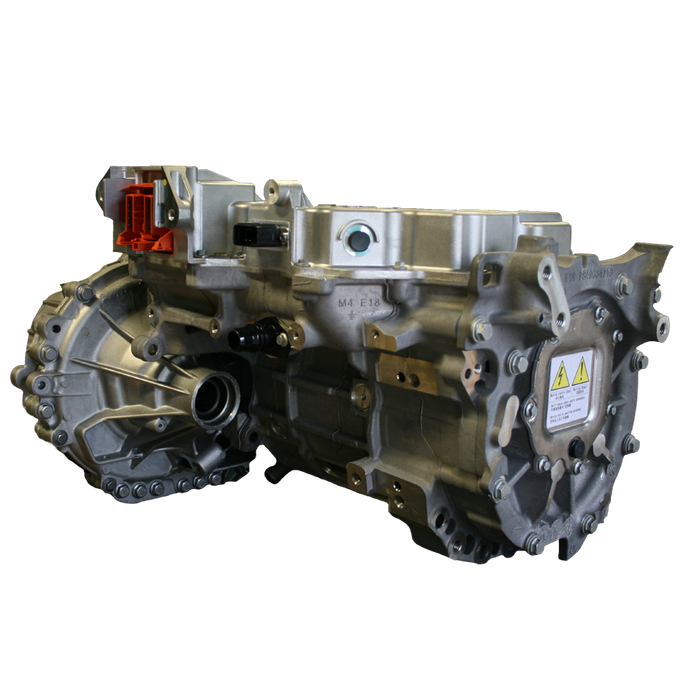

A fully integrated electric drive unit combining motor, inverter, and transmission into a compact architecture — delivering exceptional power density, high torque output, and simplified OEM integration.

Performance Overview

Peak Power
210 kW

Continuous Power
105 kW

Peak Torque
345 Nm

Continuous Torque
210 Nm

Maximum Speed

15,200 rpm

Transmission Ratio Options
9.7:1 | 12.2:1

Electrical Specifications

Voltage Range
255 – 428 Vdc

Mechanical Data

Dimensions (L × W × H)
438 × 431 × 365 mm

Weight (without Transmission)
73 kg
