EMI/EMC Frames for shielding – the Electro Magnetic Compatibility

Shielding, not only for cable assemblies and glands, is becoming an increasingly important part of electrical engineering. In applications such as automotive, navigation systems, routers, or even RFID applications, a missing EM shielding can lead to failures and malfunctions. The applicable properties are regulated in the EM Directive (2014/30/EU) in the EU-market and are intended to ensure the interference-free functioning of the equipment used. With technology constantly developing, the issue of EM is becoming increasingly important in today's connected modern world.

The EMC shielding

EM shielding's are used to protect against electromagnetic emissions, even directly on the PCB, to ensure reliable operation. A suitable shielding design can ensure the reliable operation of RFID applications. For more complex circuit designs and applications, the shielding frame can also be constructed in several sections, with different cells, to ensure that the individual components are shielded directly on the PCB.

The shielding not only protects against “incoming radiation,” but also prevents radiation from being emitted. An appropriate shielding design is therefore important to ensure the long-term reliability of the applications.



The EMI Design

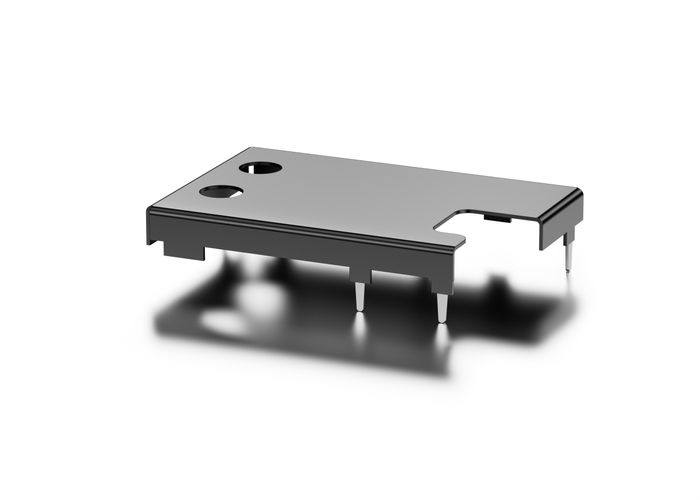

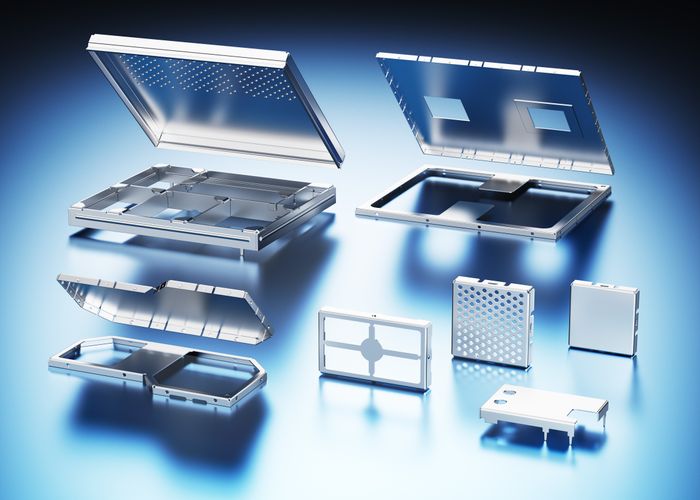

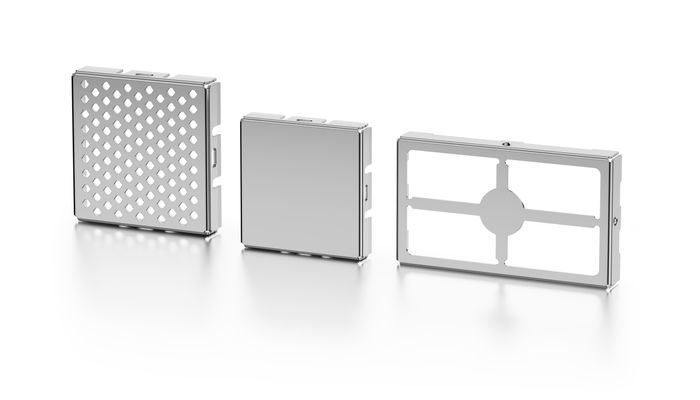

EM shielding's for electronic housings, shielding frames for printed circuit boards, or even EM frames for testing rooms can feature different designs. One-piece frames for simpler applications, which are soldered directly onto the PCB, are used just as much as multi-piece variants made up of a frame and cover. With multi-piece variants, it is important to ensure that the connection between the frame and cover is as even and as large as possible. Only the best possible connection in the right design will achieve a correspondingly good shielding effect.

The material used for the shielding is also an important factor that must be taken into account for the shielding effect, as different materials have different shielding effects. Only by combining the right material with the right design a suitable shielding effect will be achieved.



Advantages of EM-Shielding‘s

·         Maximum durability of the applications

·         High design flexibility for:

o   Best shielding functionality

o   Solderable cover or combination of frame and cover

o   Uniform connection between frame and cover

o   Laser-welded applications

o   Customizable in shape and size

o   Suitable for wave soldering (THT) and reflow soldering (SMT)

·         Different Materials

o   Copper alloy, e.g. C7521, C7701

o   Solderable steel, e.g. TS275, SPTE

o   Stainless steel, e.g. SUS304

o   Brass alloys, e.g. C2680, C5191



·         Flexible packaging solutions customized for efficient processing:

o   T&R for fully automated processing

o   Tray for manual, semi-automated, or fully automated processing



Highly efficient production – maximum flexibility

Our production technology includes laser punching/laser cutting or prototype tools for small quantities used for initial testing and evaluation. For series production, depending on the design of the shielding components and the quantity scenarios, semi-automated and fully automated processes are used – from the punching process to testing and packaging. This highly efficient production with maximum flexibility enables us to always provide the right solution – with excellent cost efficiency.



Hybrid solutions

Depending on the application requirements, it may be necessary for EM shieldings to also provide cooling performance. Although this requirement is rather rare, we also have a suitable option for this with our hybrid solutions. The use of an EM shielding frame with a black surface improves cooling performance via heat radiation, eliminating the need for an additional heat sink. In such applications, however, care must be taken to ensure that the shielding frames are not fitted with a heat-conducting film. This must always be checked carefully, as depending on the film, a capacity may be generated that affects the shielding performance. A design that does not require a film is recommended, so that the frame fits directly on the active component.



Areas of application

• EMI shielding's are used in a wide range of residential and industrial applications, such as:
• RFID-Applications
• Industrial Control systems & Automation
• Automotive & E-Mobility
• Telecommunication & Network Technology
• Mobile devices
• EMI protection for high-frequency applications
• EMI shieldings within the industry 4.0







Why EM shieldings from ASSMANN WSW?

We are a long-standing manufacturer of customized EM shieldings for a broad range of applications and markets, tailored precisely to your requirements – with precision, reliability, and on time. Our modern machinery enables us to produce anything from small sample quantities to large quantities with consistently high quality. We combine state-of-the-art technology with decades of experience – for optimized quality and performance are tailored to your requirements.
