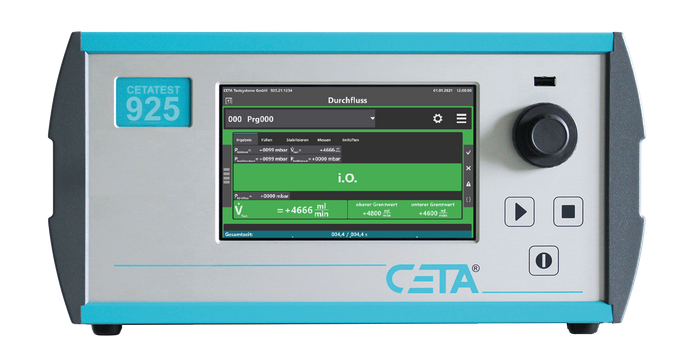

Flow Tester Series CETATEST 925
)
)
)
)
The CETATEST 925 test device is suitable for flow testing using compressed air as test medium. The measuring method uses the fact that in a laminar flow, the pressure difference between two measuring points is directly proportional to the volume flow. Laminar flow elements (LFE) are used to laminarise the air flow. The pressure difference is measured with a differential pressure sensor. In the direct method, the air flow supplied by the pressure regulator first flows through the LFE and then through the test part. In the indirect method, the LFE is located in the outlet flow of the test part. The use of an electronic pressure regulator and flow calibrations at different LFE pressures results in an extended range of applications.
The CETA flow testers can be used to measure volumetric flow rates using compressed air as the test medium. Depending on the choice of laminar flow element, the CETATEST 925 can be configured for the desired flow range.
Flow tester CETATEST 925 series
Test devices with gauge sensor, differential pressure sensor and laminar flow element
Volume flow measurement via the pressure decay on a laminar flow element
Flow measurement range: 3 ml/min to 200 l/min (depending on the type of laminar flow element)
Calibration at different test pressures available
Special variant CETATEST 925 LP for high volume flows and low test pressures
Setup support: Determination of system capability
RS-232 and Ethernet interface as standard interface | Further interfaces available
Volume flow measurement via the pressure decay on a laminar flow element
Flow measurement range: 3 ml/min to 200 l/min (depending on the type of laminar flow element)
Calibration at different test pressures available
Special variant CETATEST 925 LP for high volume flows and low test pressures
Setup support: Determination of system capability
RS-232 and Ethernet interface as standard interface | Further interfaces available
