The CETATEST 825 represents the fourth generation of CETA differential pressure testers. The CETATEST 825 is a fully automatic working leak tester for the detection of untight parts within the cycle time of the production process. The pressure in the test part volume due to a leakage is compared with the pressure in a tight reference volume (differential pressure method).

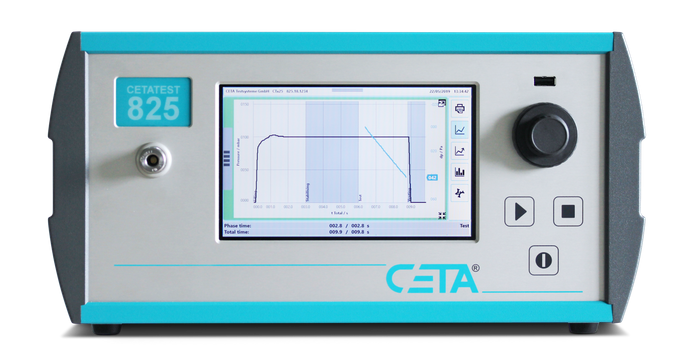

The integrated 7-inch touch screen with intuitive, clear user interface enables the display of a wide range of information (e.g. measurement curve display, histograms). Operation is possible via the touch screen as well as via a dual jog dial. Separate start / stop buttons ensure operating safety even in harsh industrial environments.

The memory capacity is sufficient for more than 1 million measured values and 256 test programs.

System

Real-time capable micro-controller system for measured value processing

Industrial PC architecture for display and operation

Interaction

7" touch screen, dual jog dial and remote start/stop buttons

Intuitive user interface

Integration of product images, barcodes, QR codes

Wide range of result units selectable

User support with e.g. parameter determination and conversion of the measuring units

Flexible extension of the functionalities of the test instrument

PC application software "CETA Soft 2G

Visualization

Result display (evaluation with color coding)

Various graphical display options (measurement curves, histograms, zoom function)

Measurement series and statistics

Sensor technology

Test method: Differential pressure test

Overpressure sensor, differential pressure sensor

Pressure ranges: -1 bar to 30 bar

Measuring ranges: ± 500 Pa / ± 5,000 Pa

Resolution 0.1 Pa

Features

Flow-optimized pneumatics

Significantly reduced intrinsic volume of the measuring circuit

Memory for more than 1 million measured values

More than 256 test programs

Test leak connection

4 U housing
