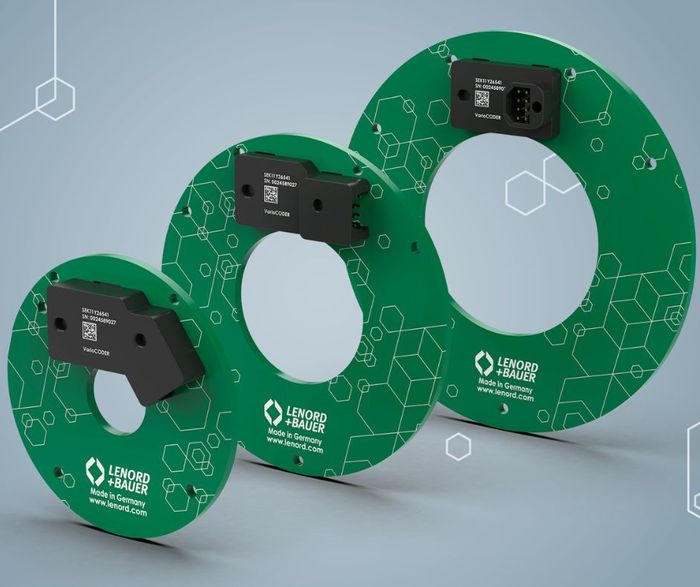

For applications where installation space in electric drives is extremely limited, Lenord+Bauer now offers an inductive rotor position encoder with extremely small dimensions for detecting position, angle and speed.

The compact version of the tried-and-tested VarioCoder can be integrated into all motor designs in the smallest spaces with high mounting tolerances. The rotor position encoder scores with a further reduced outer diameter, as the electronics housing is located directly on the stator.

In addition, the user can choose between three cable outlets: axial, tangential and at an angle of 45°. This increases design freedom and enables even better integration in tight installation spaces.

The variable size concept is also retained in the compact version, so that the VarioCoder can be individually adapted to the customer’s engine design.
